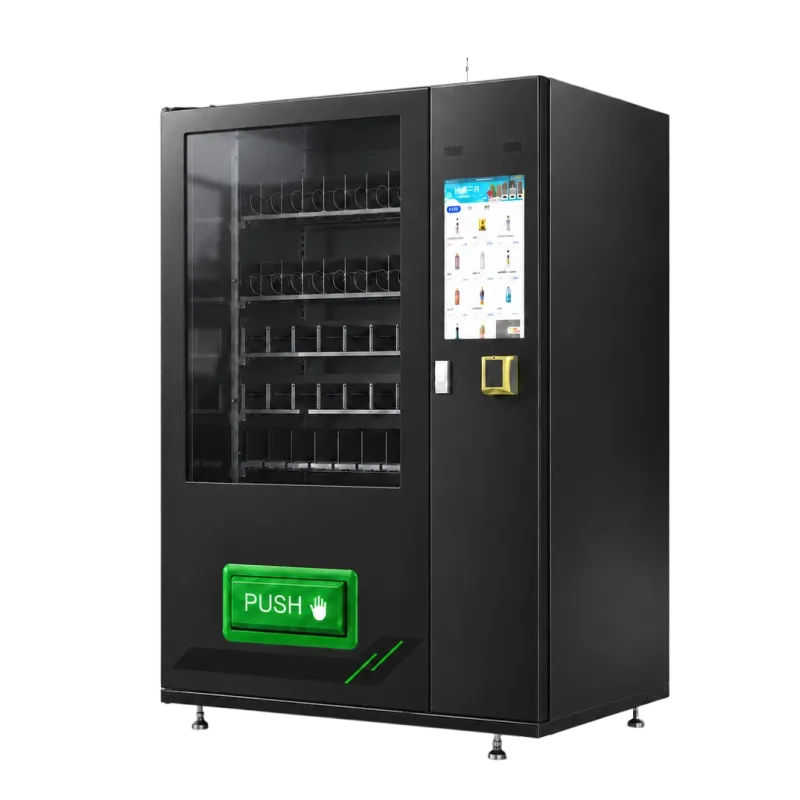

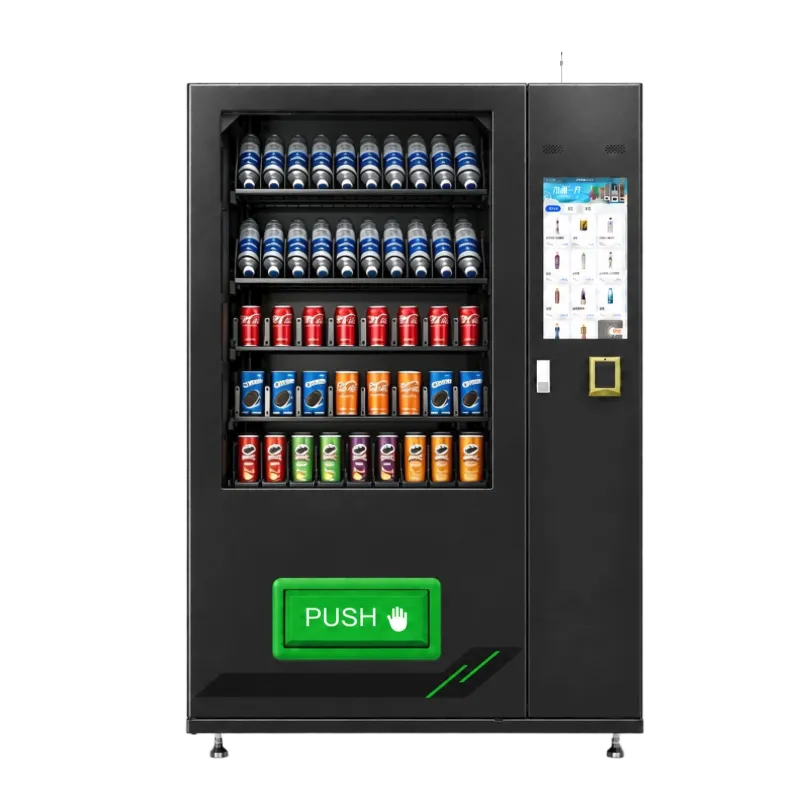

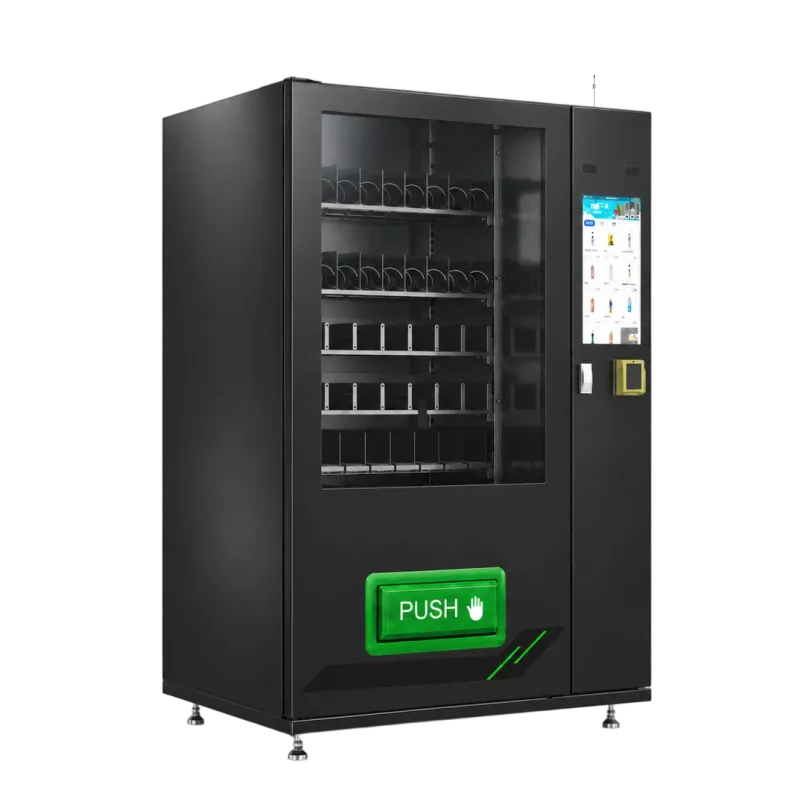

Designed for high-traffic retail environments, this 21.5-Inch Touchscreen Vending Machine combines a large touchscreen interface with flexible spiral, conveyor belt, and vertical channel options. Operators can adapt the layout for multiple product categories and choose elevator or gravity dispensing based on sales needs. With adjustable lanes, durable cabinet construction, mobile payment support, and optional peripherals such as cash/coin acceptors, selection keypads, QR scanners, and ID readers, it is well suited for hospitals, large factories, malls, and other busy locations.
.webp "Limited Product Flexibility")
.webp "Inefficient Daily Operation")
.webp "Limited User Experience")
For locations with heavy foot traffic and varied purchasing needs, ZHILAI’s 21.5-Inch Touchscreen Vending Machine helps operators serve more customers with a flexible, customizable retail setup. Its spiral, conveyor belt, and vertical channel options support different product formats, while elevator or gravity dispensing can be selected to match operational priorities. The cabinet and peripheral configuration can be customized for project requirements, including payment modules, keypads, QR scanners, and ID readers, making it suitable for hospitals, large factories, malls, and other high-demand sites.
Item | Specification |
Model | ZL-VM-L-100 / ZLUS-VM-L-100 / ZL-VM-L-110 / ZLUS-VM-L-110 |
Overall Dimensions | Type: 20; 1150 × 1011 × 2032 mm (W × D × H) |
Power | North America: 120V，60Hz；Europe: 220–240V, 50Hz |
Rated Power | 450 W |
Display | 10.1-inch Smart Touchscreen |
Operating System | Android 14 |
Connectivity | 4G Module; Optional: Router |

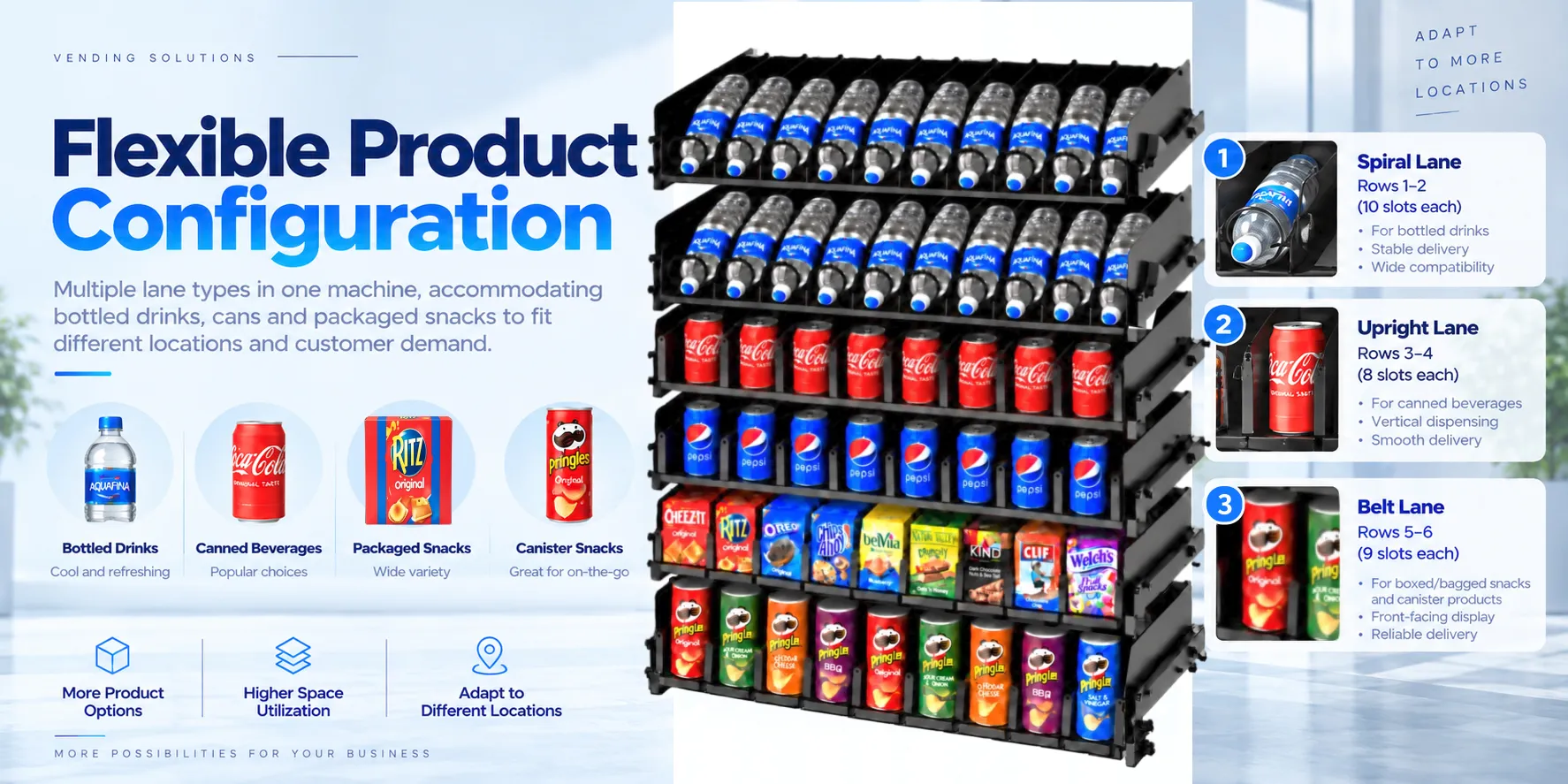

Vend Lane Configuration | 6-tier Standard Spiral Coil Lanes; Optional: Conveyor Belt Lanes or Vertical Vend Lanes |
Product Selections | 54 (Elevator Delivery) / 60 (Gravity Drop) |
Product Capacity | 324 items (Elevator Delivery) / 360 items (Gravity Drop) |
Payment Options | Mobile QR Code Payment; Optional: Cash and Card Payment |
Delivery Method | Elevator Delivery / Gravity Drop |
Temperature Range | 4°C–25°C, Adjustable |
Refrigerant | R290 |
Net Weight | 350 kg |
Remote Management | PC, Mobile App, or WeChat Mini Program |
This model uses a taller cabinet with larger capacity, while keeping a cost-efficient 10.1-inch touchscreen setup for self-service snack retail.
