A smart self-service retail device integrated with precise refrigeration control, IoT management and modular structural design. It maintains a constant temperature of 4–12°C to keep flowers fresh and uses transparent compartments with independent lighting for clear product display. The machine supports full-process automatic shopping including selection, payment and door opening, providing customers with safe, efficient and 7×24h unmanned retail service.

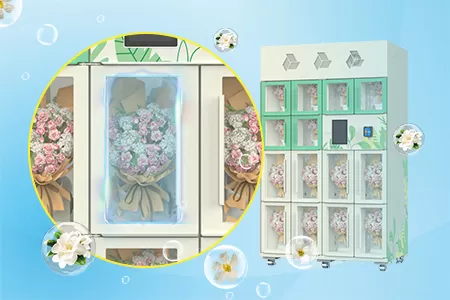

Flowers are highly perishable and require stable temperature control (4–12°C) and professional refrigeration systems, increasing technical difficulty and equipment costs.
Regular flower replenishment, lighting adjustment, compartment cleaning, and refrigeration system upkeep demand continuous manpower and standardized management.

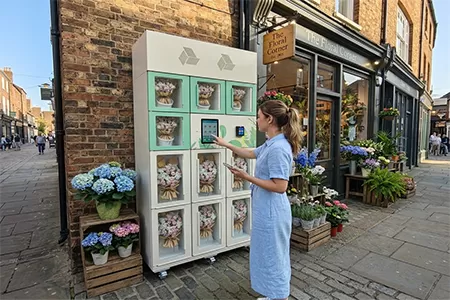

Unmanned self-service requires stable payment systems, secure lock control, and remote IoT monitoring; hardware-software compatibility and outdoor durability also raise development and deployment barriers.
Zhilai smart vending machine restructures the retail ecology based on "Full-scenario Penetration + Data Closed-loop", and deeply integrates IoT sensing, AI visual recognition and block chain tracking technology to create the smart retail network. The machine combines multi-mode interaction screen, smart goods shelf and adaptive temperature control system to realize accurate marketing, optimize supply chain, improve revenue per available square meter in community, transportation hub, etc., and establish the next generation of retail infrastructure "Fulfill immediate demand immediately and create an ecology for each locker".
Item | Specification | Remarks |
Input voltage | AC110V-120V, 60HZ AC220V, 50HZ | US version EU version |
Rated power | 700w | |
IPC configuration | RK3568, 2G+16G | |
Screen dimension | 10.1" | |
POS terminal | (optional) | (optional) |
Electric lock | Zhilai ZL-21A | |
Light | White; color temperature 5000K | |
Network connection method | LAN/4G | |
Number of compartments | 14 | |
Dimension (W*H*D) | 1396*2220*829（mm） | With locker feet |
Compartment type/dimension | S (6) L (8) Net dimension:235.5*500*500 | W*H*D/mm |
Material | Exterior panel: galvanized steel. Inner liner: stainless steel. Locker frame: polyurethane foaming. | |
Weight | 380KG | Net weight for reference only. |
Operating temperature | -10~40℃ | |
Storage temperature | -30~60℃ | |
Cooling temperature | 7- 13℃ | |
Refrigerant | R290 | |
Foaming agent | Polyurethane | |
Heating module | Fin heater | Optional |
