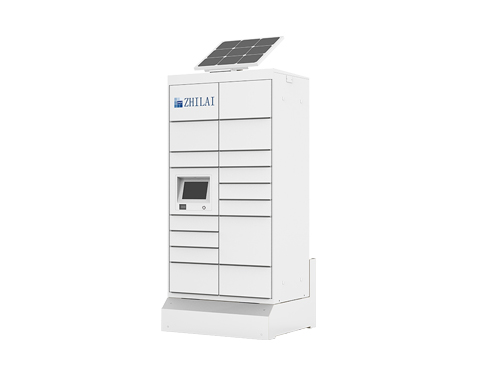

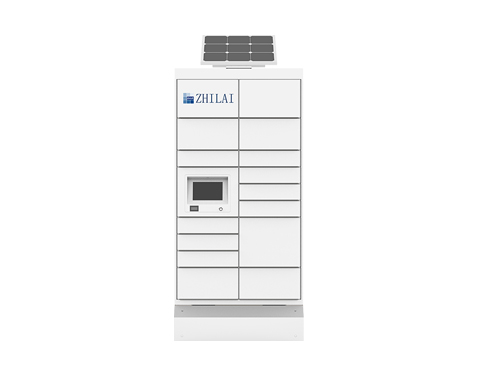

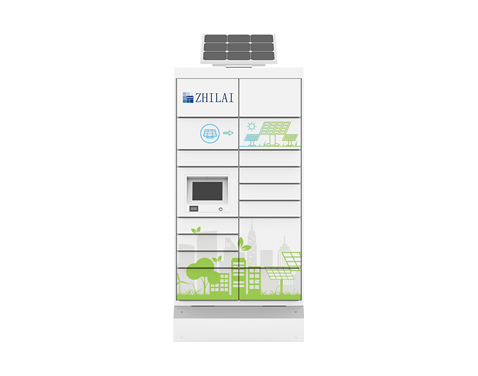

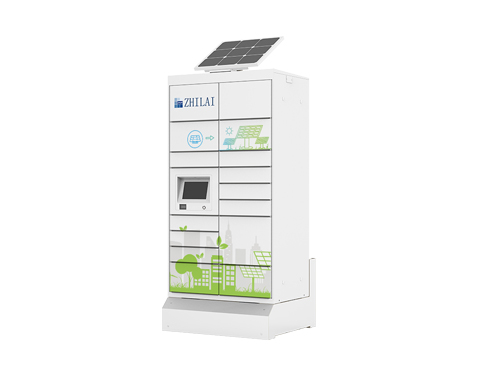

Solar Powered Parcel Locker D1, the Linux flagship model, is a high-end version for target markets, which equips with the low-power Linux system and intelligent power management solution. It leverages solar energy, battery, and grid power supply to deliver green energy efficiency and ultra-long battery life. Supporting low power consumption and high availability, it is an optimal smart parcel locker solution for well-lit overseas outdoor scenarios requiring plug-and-play and flexible deployment.
High-efficiency panels and lithium storage realize steady off-grid self-power supply.
Global low-carbon policies urge logistics terminals to cut power consumption and emissions.
Remote intelligent monitoring cuts frequent manual field inspections for faraway equipment.

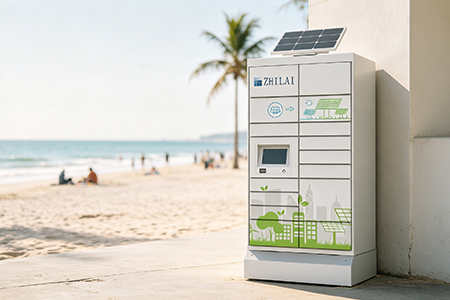

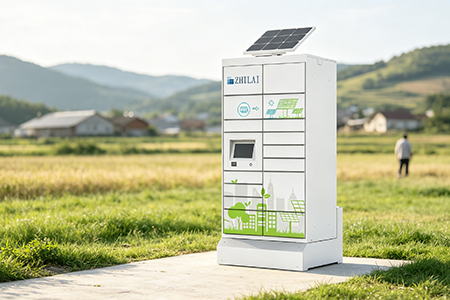

Built for demanding commercial deployments, our premium solar-powered parcel locker combines exceptional durability with advanced customization capabilities. Designed with over 1 mm thick galvanized steel, it delivers outstanding corrosion resistance and withstands winds up to Level 12. The open architecture supports secondary development, enabling seamless integration with third-party platforms and customized applications.Powered by a high-capacity battery system, the parcel locker delivers exceptional energy efficiency and long-lasting performance. Even without grid power or direct sunlight, it can continue operating for months, making it an ideal solution for remote locations and areas with limited infrastructure.

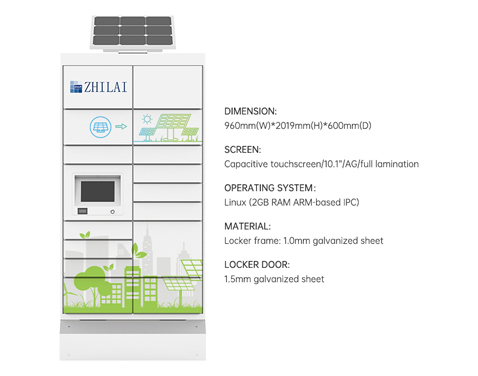

Model | ZL-PL-A31-A-000165 |
Overall locker dimension | 960mm(W）*2019mm(H）*600mm(D) |
Screen | Capacitive touchscreen/10.1”/AG/full lamination |
Operating system | Linux (2GB RAM ARM-based IPC) |
Grid power | 110V-230V |
Power supply method | Powered by grid power/battery pack/solar energy |
Grid outage duration | When fully charged, with no grid power and no sunlight, the locker can operate for more than half a year with one 232AH battery pack based on 30 operation cycles per day and duration of 1 minute per operation.（ Each set of locker is equipped with one battery pack) |
Operating temperature | -20℃ - 60℃ |
Material | Locker frame: 1.0mm galvanized sheet; Locker door: 1.5mm galvanized sheet |
Operating humidity | 10%–85% RH, non-condensing |
Operating voltage | 12V |
Standby power consumption | 0.312W |
Weight (with the concrete base) | 624.5kg |
Battery pack status query | 232Ah\12.8V\RS485 |
Solar panel | 12V system/50W |
Wind resistance | Passed level 12 test |
