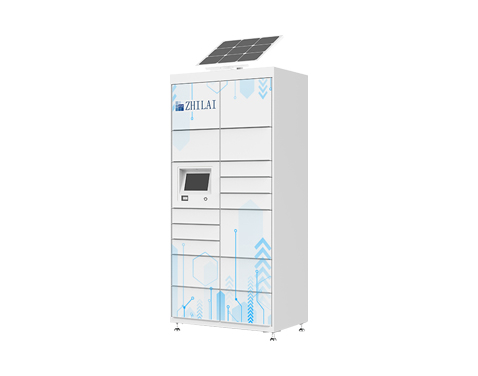

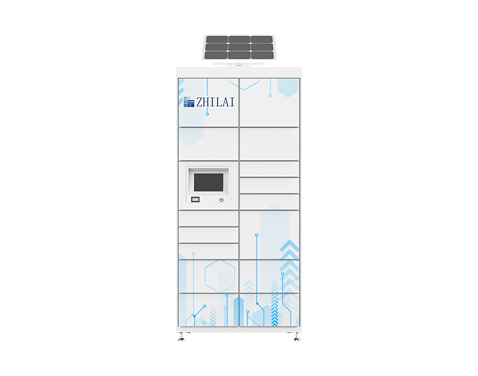

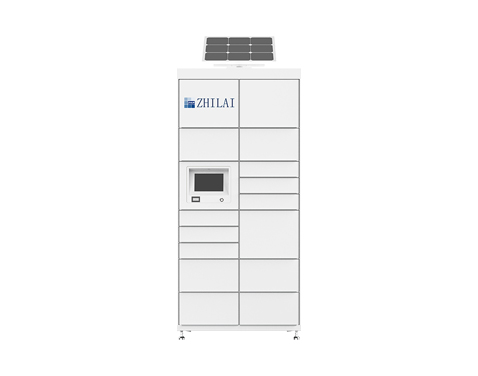

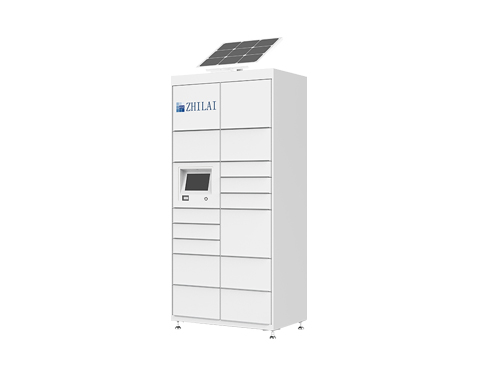

Smart Solar Parcel Locker D2, the Linux cost-effective model, is a dedicated cost-effective solution for various applications. Featuring cost-effective galvanized sheet with e-coating process, it is moisture-proof, enables low-power operation, and supports basic customized development, meeting mass commercial deployment at affordable procurement costs. It fully opens its system framework to allow customers to carry out targeted secondary development according to their unique business demands.
Conventional lockers cannot be placed in rural areas without stable municipal power supply.

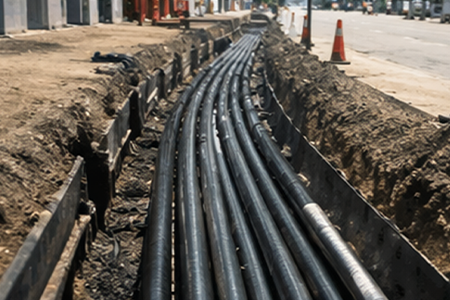

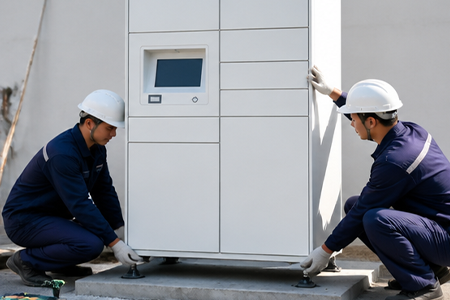

Cable construction and power access approval bring extra investment to traditional locker deployment.

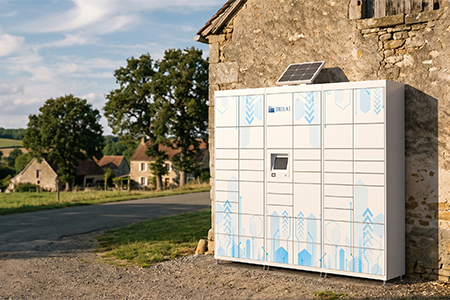

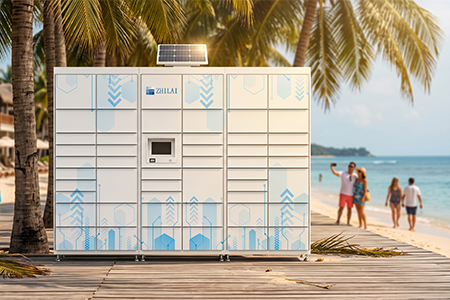

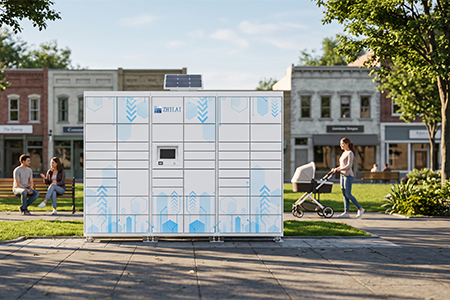

Stable and reliable solar parcel lockers require no electrical works and fit scenic spots, plazas and temporary outdoor zones.

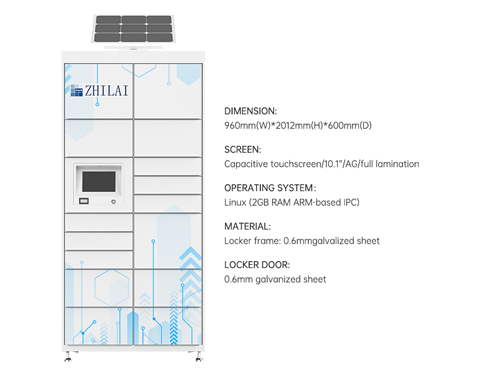

Model | ZL-PL-A31-A-000205 |
Locker dimension | 960mm(W)*2012mm（H)*600mm(D) |
Screen | Capacitive touchscreen/10.1”AG/ full lamination |
OS | Linux（2GB RAM ARM-based IPC） |
Power supply | Solar power/battery pack/grid power |
Operating voltage | 12V |
Standby power consumption | 0.312W |
Weight | 120KG |
IP rating | IP54 |
Battery pack | 12V/232AH/lithium iron phosphate battery/chargeable |
Solar panel | 12V/50W |
Material | Locker frame: 0.6mmgalvalized sheet; Locker door: 0.6mm galvanized sheet |
Number of compartments | 15（excluding the control compartment） |
Grid power range | AC110V~AC230V |
Operating humidity | 10%~85%RH; no condensation |
Operating temperature | -20℃~60℃ |
Wind resistance | Level 12 |
Standby operation duration | When fully charged, with no grid power and no sunlight, the locker can operate for more than half a year with one 232AH battery pack based on 30 operation cycles per day and duration of 1 minute per operation. |
