A smart retail device based on various types of goods shelves, IoT, AI and multi-mode interaction technology. The accurate commodity sales and retail network deployment are realized by the full-process automatic service and data-driven maintenance. The machine provides 7*24h unmanned self-service shopping experience for customers.
1. Complex address selection and decoration
2. High investment
1. Limited business hours
2. High operating cost
1. Time-consuming inventory check
2. Time-consuming revenue accounting
Zhilai smart vending machine restructures the retail ecology based on "Full-scenario Penetration + Data Closed-loop", and deeply integrates IoT sensing, AI visual recognition and block chain tracking technology to create the smart retail network. The machine combines multi-mode interaction screen, smart goods shelf and adaptive temperature control system to realize accurate marketing, optimize supply chain, improve revenue per available square meter in community, transportation hub, etc., and establish the next generation of retail infrastructure "Fulfill immediate demand immediately and create an ecology for each locker".

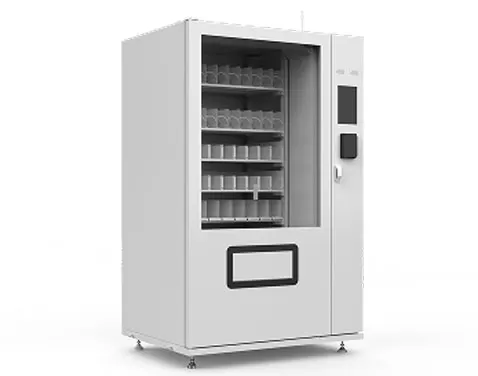

Smart Vending Machine (Spiral goods shelf)
| Locker dimension (L*D*H): | 1150*1011*2031mm (US version), 1150*980*2031mm (EU version) |
| Screen dimension: | 10.1" touch display |
| Capacity: | 300 |
| Payment method: | Google pay, Apple pay, POS |
| Goods track: | Spiral shelf (other customized shelves optional) |
| Number of shelves: | 60 (commodity categories) |
| Storage temperature: | -30～60℃ |
| IP grade: | IP20 |
| Rated voltage: | 110V/AC |
| Rated power: | 550w |
Smart Vending Machine (Vertical Channel)
| Dimensions (L*D*H): | 1150* 1011* 2031mm |
| Display Size: | 10.1-inch Touch Display |
| Capacity: | 210 |
| Payment Methods: | Google Pay, Apple Pay, POS |
| Channel Type: | Vertical (Customizable) |
| Number of Channels: | 35 (Product Types) |
| Storage Temperature: | -30 to 60°C |
| Ingress Protection: | IP20 |
| Rated Voltage: | 110V/AC |
| Rated Power: | 550W |
Smart Vending Machine (Elastic-clip channel)
| Dimensions (L*D*H): | 1190* 947* 2031mm |
| Display Size: | 10.1-inch Touch Display |
| Capacity: | 280 |
| Payment Methods: | Google Pay, Apple Pay, POS |
| Channel Type: | Elastic-clip Channel (Customizable) |
| Number of Channels: | 35 (Product Types) |
| Storage Temperature: | -30 to 60°C |
| Ingress Protection: | IP20 |
| Rated Voltage: | 110V/AC |
| Rated Power: | 550W |
Smart Vending Machine (Combination Channel)
| Dimensions (L*D*H): | 1150* 1011* 2031mm |
| Display Size: | 10.1-inch Touch Display |
| Capacity: | Spring Channels (9), Track Channels (7), Vertical Channels (7) |
| Payment Methods: | Google Pay, Apple Pay, POS |
| Channel Type: | Magazine Channel, Track Channel, Vertical Channel |
| Number of Channels: | 23 (Product Types) |
| Storage Temperature: | 4 to 10°C (Adjustable) |
| Ingress Protection: | IP20 |
| Rated Voltage: | 110V/AC |
| Rated Power: | 450W |
